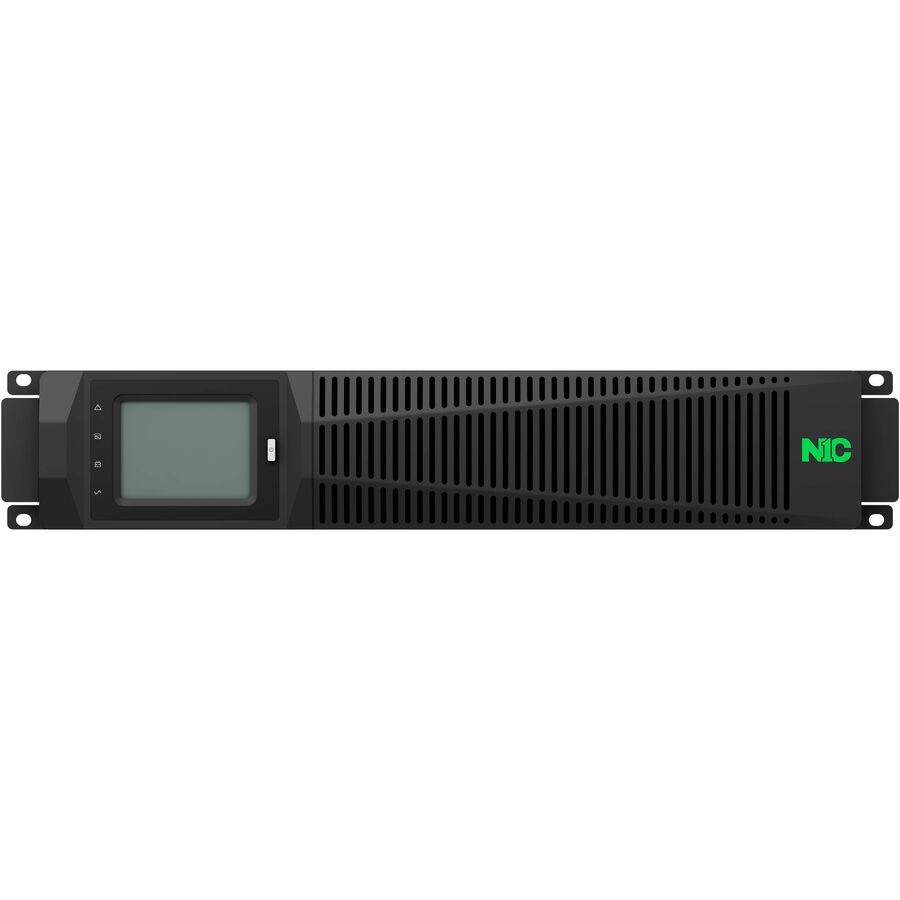

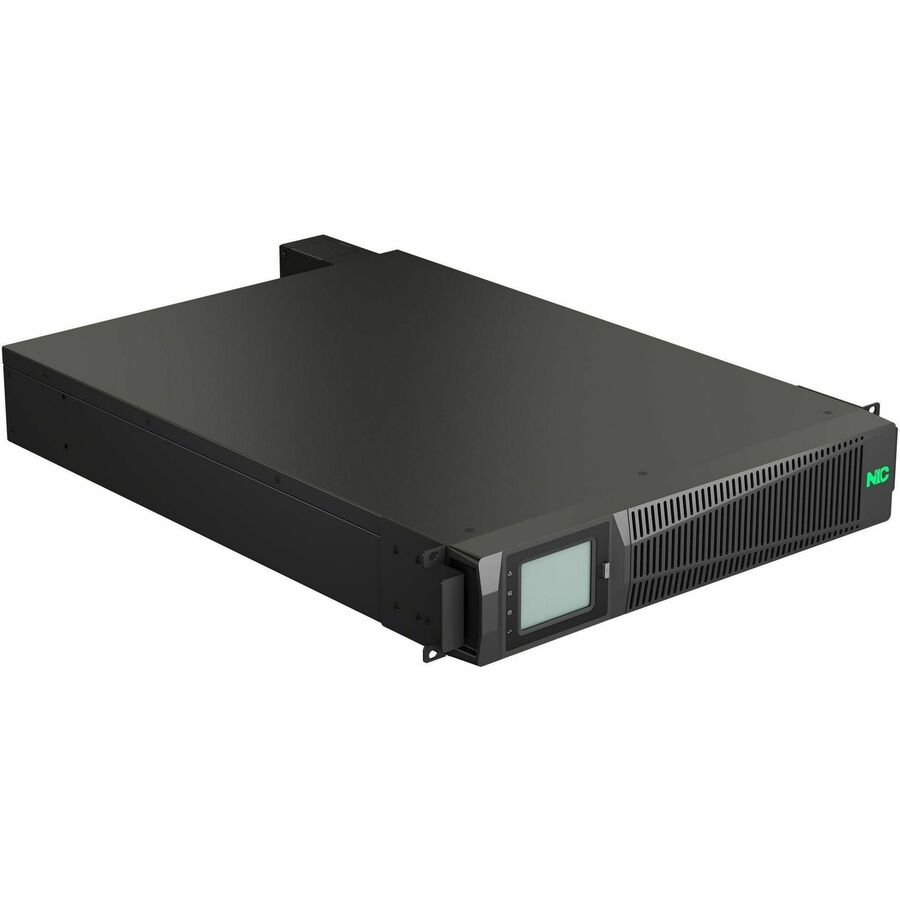

LK-series
N1C.LK10000
Plug/Connector Type: Hardwired
Receptacle Type:
- NEMA L6-30R
- Hardwired
Receptacle Detail: 2 x NEMA L6-30R
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: Hospital
Cord Length: 72"
Load Capacity (VA): 10000 VA
Load Capacity (Watt): 10 kW
Input Voltage: 230 V AC
Input Voltage Range:
- 135 V AC - 250 V AC
- 208 V AC - 240 V AC
Output Voltage:
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
Input Frequency:
- 50 Hz
- 60 Hz
Waveform Type: Pure Sine Wave
Network Management:
- Intelligent Card Slot
- SNMP
- Dry Contact
Serial Port: Yes
USB: Yes
EPO Port: Yes
Battery Chemistry: Lithium-Ion (LiFePO4)
Backup/Run Time (Full Load): 9 Minute
Backup/Run Time (Half Load): 20 Minute
Typical Battery Recharge Time: 6 Hour
Maximum Operating Temperature: 122°F (50°C)
Operating Humidity: 0% - 95%
Sound Emission (A-Weighted): 50 dB(A)
Form Factor: Rack/Tower
Rack Height: 2U
Height: 3.4"
Width: 17.3"
Depth: 24.5"
Weight (Approximate): 37.50 lb
Package Contents:
Certifications & Standards:
Country of Origin: China
Limited Warranty: 10 Year
Additional Warranty Information:
10-year warranty on electronics and battery
